IALA System of Buoyage/Navigation Aids
Click for more information
M76000
Ø 3000mm
High visibility red, green, white, yellow or blue as per IALA recommendations .Designed for harsh sea conditions.Four quarters made in polyethylene filled with EPS or PU
TECHNICAL DATA
Ø: 3000 mm
Height : 9650 mm
The Lantern focal height is
adjustable with modular parts.
Raw material : UV-stabilised virgin polyethylene
Metal structure : Hot Dip galvanized
or stainless steel
M75500
Ø 2500mm
High visibility red, green, white, yellow or blue as per IALA recommendations .Designed for harsh sea conditions.Four quarters made in polyethylene filled with EPS or PU
TECHNICAL DATA
Ø: 2500 mm
Height : 5900 mm
Note : The Lantern focal height is adjustable with modular parts.
Raw material : UV-stabilised virgin polyethylene
Filling : EPS veya Poliüretan /EPS or PU
Metal structure : Hot Dip galvanized, aluminum or stainless steel
M75000
Ø 2200 mm.
High visibility red, green, white, yellow or blue as per IALA recommendations .Designed for harsh sea conditions.Modular parts with individual colors .Supported connection holes for mooring The Top fits to every marine lantern or day signal.
* Design for harsh sea conditions
* 3 or 4 pieces production with individual color options
* Supported connection holes for mooring
* Top end fit to every marine lantern or day signal
TECHNICAL DATA
Ø: 2200mm
Height without top mark: 4010mm
Note : The Lantern focal height is
adjustable with modular parts.
Total weight : 650 kg
Raw material : UV-stabilised virgin polyethylene
Filling : EPS or PU
Metal structure : Hot Dip galvanized
or stainless steel
M74000
Ø 1750 mm.
* Design for harsh sea conditions
* 3 pieces production with individual color options
* Supported connection holes for mooring
* Top end fit to every marine lantern or day signal
TECHNICAL DATA
Ø: 1750 mm
Height without top mark : 3550mm
Note: The Lantern focal height is adjustable
with modular parts.
Raw material : UV-stabilised virgin polyethylene
Filling : EPS or PU
Metal structure : Hot Dip galvanized
or stainless steel
M73000
Ø 1250 mm.
* Red, green, yellow, white, blue or black
as per IALA Recommendations.
* Inside : EPS or Polyurethane filled
* Hot dipped galvanized or stainless steel shaft through the body.
* Flange for top mark and light at upper
end, swivel for mooring at bottom end
TECHNICAL DATA
Ø 1250mm
Height without top mark : 1200mm
Note: The Lantern focal height is
adjustable with modular parts.
Raw material : UV-stabilised virgin polyethylene
MOORING BUOY
Click for more information
M77000
Ø 4000 mm
TECHNICAL DATA
Ø: 4000 mm
Overall Lenght : 4700 mm
Floatation per centimeter :120 kg
Overall weight of buoy with shackle : 3800 kg
Inner Structure : Hot Dip Galvanized
Float Material : UV-stabilized Virgin
Internal Foam Filling: EPS or PU
M75600
Ø 2500 mm
TECHNICAL DATA
Ø:2500 mm
Overall Lenght: 3250 mm
Buoyancy: 4860 kg
Overall weight of buoy with shackle : 1500 kg
Inner Structure: Hot Dip Galvanized
Float Material: UV-stabilized Virgin
Internal Foam Filling: EPS or PU
M75600
Ø 2500 mm
TECHNICAL DATA
Ø:2500 mm
Overall Lenght: 3250 mm
Buoyancy: 4860 kg
Overall weight of buoy with shackle : 1500 kg
Inner Structure: Hot Dip Galvanized
Float Material: UV-stabilized Virgin
Internal Foam Filling: EPS or PU
Mooring and Marker Buoys
Click for more information
M03280 Conical Buoy - 2500lt
Usage: heavy mooring applications, marking and for fish farms
Colour: orange, yellow
Raw material: polyethylene
Inside: Filled with PU or EPS galvanized shaft.
Dimension: Ø166x175cm.
Weight: 166 kg.
Buoyancy: 2250 kg.
M03290 Conical Buoy - 1600lt
Usage: heavy mooring applications, marking and for fish farms
Colour: orange, yellow
Raw material: polyethylene
Inside: Polyurethane filled mooring buoy with galvanized shaft.
Dimension: Ø136x165 cm.
Weight: 110 kg.
Buoyancy: 1500 kg.
M03300 Cylindrical Buoy - 1200lt
Usage: heavy mooring applications, marking and for fish farms
Colour: orange, yellow
Raw material: polyethylene
Inside: Polyurethane filled mooring buoy with galvanized shaft.
Dimension: Ø110x115cm.
Weight: 90kg.
Buoyancy: 1000kg.
M03305 Buoy - 900lt
Buoyancy: 800 kg
Weight: 65 kg
M03310 Cylindrical Buoy - 600lt
Usage: heavy mooring applications, marking and for fish farms
Colour: orange, yellow
Raw material: polyethylene
Inside: Polyurethane filled mooring buoy with galvanized shaft.
Dimension: Ø95x76cm.
Weight: 60kg.
Buoyancy: 500kg.
M03303 Buoy - 500lt
Buoyancy: 450 kg
Weight: 38 kg
M03259 Buoy - 450lt
Optional:Lettering,numbering,signage,retro reflective tape,radar reflector,solar marine light,can or conical shapes.
*Raw material: Polyethylene
*Colour: As specified
*Hardware:Hot Dip Galvanized Steel Part and Swivel.
Diameter:80cm
Buoyancy: 380 kg
Weight: 50 kg
M03251 BUOY - 390lt
Weight: 114 kg
Optional: Lettering, numbering, signage, retro, reflective tage, radar reflector, solar marine light
M03325 Globe Buoys - 320 LT
Colour: orange, yellow, white
Raw material: polyethylene
Dİmension: Ø 85cm.
Buoyancy:290 kg.
Weight:30 kg.
M03330 Conical Buoy - 300lt
Usage: heavy mooring applications, marking and for fish farms
Colour: orange, yellow
Raw material: polyethylene
Inside: Polyurethane filled mooring buoy with galvanized shaft.
Dimension: Ø75.5x110cm.
Weight: 28kg.
Buoyancy: 250kg.
M03345 Buoy - 200lt
Buoyancy: 180 kg Weight: 17 kg

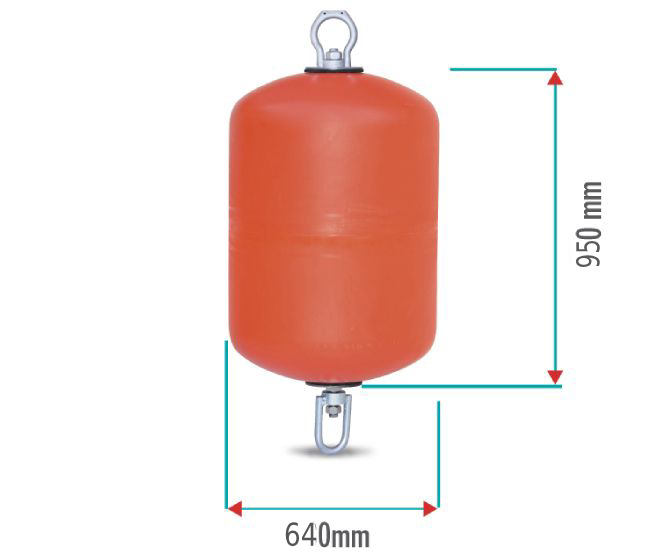

M03340 Cylindrical Buoy - 200lt
Usage: Marking applications.
Colour: Orange, yellow
Raw material: Polyethylene
Inside: Polyurethane filled mooring buoy with galvanized shaft.
Dimension: Ø64 x 95 cm Weight:22kg. Buoyancy:180 kg.
M03255 Buoy - 180lt
Weight: 18 kg
M03091 Buoy - 170lt
Buoyancy: 155 kg Weight: 18 kg
M03355 Buoy - 100lt
*Raw material: Polyethylene
*Colour: As specified
*Hardware:Hot Dip Galvanized Steel Part and Swivel.
Diameter:60cm
Buoyancy: 85 kg
Weight: 10.5 kg
M03350 Cylindrical Buoy - 100lt
Usage: Marking applications.
Colour: Orange, yellow
Raw material: Polyethylene
Inside: Polyurethane filled mooring buoy with galvanized shaft.
Dimension: Ø43 x 65 cm Weight:11kg. Buoyancy: 90 kg.
M03254 Buoy
Weight : 53 kg
M03249 Buoy 80 LT
Weight: 14 kg
M03250 Marker Buoy 80 LT
Usage:
Aids to navigations,channels,canals,marinas,harbours, aquaculture farms,offshore hazards,coastal development projects e.t.c Optional:Lettering,numbering,signage,retro reflective tape,radar reflector,solar marine light,can or conical shapes . Raw material: polyethylene *Ballast:concrete *Colour: as specified *Hardware:stainless bushing *Inside: Polyurethane
Dimensions
M03250:1800 x 250 mm
Weight:30 kg
M03552 Marker Buoy 70 LT
Usage: Marking Applications.
Raw Material: Polyethylene
Inside: Polyurethane Filled.
Dimension: Ø500 mm
Inner Diameter: 41 mm
Weight: 8.5 kg.
Buoyancy: 60 kg
M03260 Marker Buoy
Usage:
Aids to navigations,channels,canals,marinas,harbours, aquaculture farms,offshore hazards,coastal development projects e.t.c Optional:Lettering,numbering,signage,retro reflective tape,radar reflector,solar marine light,can or conical shapes . Raw material: polyethylene *Ballast:concrete *Colour: as specified *Hardware:stainless bushing *Inside: Polyurethane
Dimensions
M03260:1800 x 430 mm
Weight:26 kg
M03096 Dan Buoy
M03360 Buoy - 50 LT
Usage: Marking applications.
Colour: Orange, yellow
Raw material: Polyethylene
Inside: Polyurethane filled mooring buoy with galvanized shaft.
Dimension: Ø45 cm Weight: 4 kg. Buoyancy: 35 kg
M03361 Buoy - 50 LT
Usage: Marking applications.
Colour: Orange, yellow
Raw material: Polyethylene
Inside: Polyurethane filled.
Dimension: Ø45 cm Weight: 4 kg. Buoyancy: 35 kg
M03205 Buoy - 30 LT
Colour: On Demand
Raw material: polyethylene
Inside: Polyurethane filled mooring buoy with galvanized shaft.
Dimensions: Ø45x50cm.
Weight: 4 kg.
Buoyancy: 20 kg.
M03430 Globe Buoy with Flag and Light - 26 LT
It has an orange flag which fixed with plastic apparatus.
Usage: Inshore marking applications.
Colour: orange, yellow
Raw material: polyethylene
Dimension: Ø38cm.
Weight:1.2kg.
Buoyancy: 25kg.
M03270 Marker Buoy - 26 LT
Solves the problem of marking during casting and net collecting. Flag in daylight and automatic flashing light in night time are used as marker. Bottom is filled with concrete for ballasting and the rest is filled with poly urethane
Dimensions: Ø 38 cm, Weight: 3,5 kg , Buoyancy: 25kg.
M03410 Globe Buoy with Light - 26 LT
It has a flashing light which fixed with plastic apparatus. The batteries work with two pieces of AA Alkaline Batteries.
Usage: Marking applications.
Colour: orange, yellow
Raw material: polyethylene
Dimension: Ø38cm.
Weight:1.2kg.
Buoyancy: 25kg.
M03420 Globe Buoy with Flag - 26 LT
It has an orange flag which fixed with plastic apparatus.
Usage: Inshore marking applications.
Colour: orange, yellow
Raw material: polyethylene
Dimension: Ø38cm.
Weight:1.2kg.
Buoyancy: 25kg.
M03400 Globe Buoys - 26 LT
Colour: On demand
Raw material: polyethylene
Dİmension: Ø38cm.
Weight:1,2kg.
Buoyancy: 25kg.
M03240 Konik Şamandıra - 25 LT
M03252 BARRIER FLOATS
M03201 Buoy - 17lt
Buoyancy: 15 kg
Weight: 4,7 kg
M03200 Conical Buoy - 17 LT
Colour: orange, yellow
Raw material: polyethylene
Inside: Polyurethane filled mooring buoy with galvanized shaft.
Dimensions: Ø32x76cm.
Weight: 2,7kg.
Buoyancy: 15kg.
M03220 Conical Buoy - 15 LT
15 lt conical buoy is produced from polyethylene material
Dimensions:
Diameter: 32cm
Lenght:80cm.
Weight: 1.2kg.
Buoyancy: 13kg.
M03090 APNEA BUOY - 14 LT
Buoyancy: 14 kg
Weight: 1,5 kg
M03100 Pear-Shaped Buoy - 9 LT
Colour: orange,yellow, white
Dimensions: Ø 25x44cm.
Weight: 650gr.
Buoyancy: 8kg.
M03110 Photoluminescent Pear-Shaped Buoy - 9 LT
At nights, it radiates the light which it absorbs during the day.
Colour: phosphoric white
Raw material: polyethylene
Dimensions: Ø 25x44cm.
Weight: 650gr.
Buoyancy: 8kg.
M03120 Pear-Shaped Buoy with Flag - 9 LT
Colour: orange, yellow, white
Flag colour: orange
Raw material: polyethylene
Dimensions: Ø 25x44cm.
Weight: 650gr.
Buoyancy: 8kg.
M03095 Conic Buoy - 1,7 LT
Buoyancy: 1,5 kg
Weight: 0,5 kg
Floating Clamps
Click for more information
M03580
2580 LT
Buoyancy: 2320 kg
M03567
1700 LT
Buoyancy: 1530 Kg
M03545
500 LT
Diamensions : Ø 100 cm X 100 cm
Inner Diameter : 45 cm
Buoyancy: 450 Kg
M03550
430 LT
Dimensions : Ø 100 cm X 100 cm
Inner Diameter : 50 cm
Buoyancy: 387 Kg
M03532
176 LT
Diamensions : Ø 72 cm X 77 cm
Inner Diameter : 31,5 cm
Buoyancy: 160 Kg
M03528
120 LT
Diamensions : Ø 60 cm X 75 cm
Inner Diameter : 28 cm
Buoyancy: 108 Kg
M03510
40 LT
Diamensions : Ø 40 cm X 15 cm
Inner Diameter : 10,5 cm
Buoyancy: 18 Kg
LANE MARKERS & BARRIER FLOATS
Click for more information

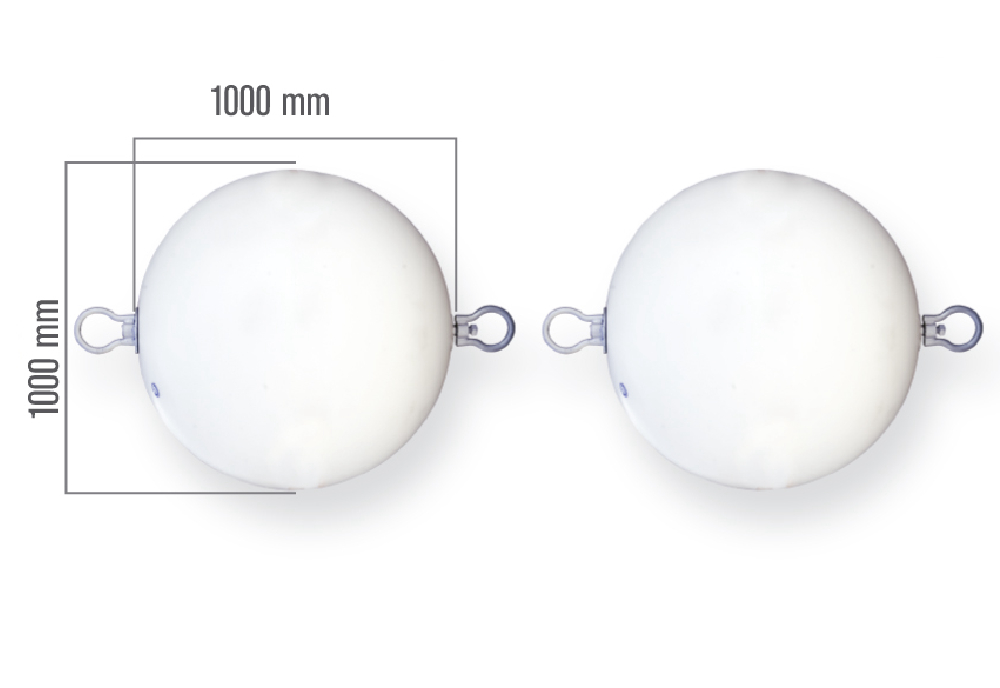

M03526
500 LT
Weight: 38 kg
Buoyancy: 450 kg

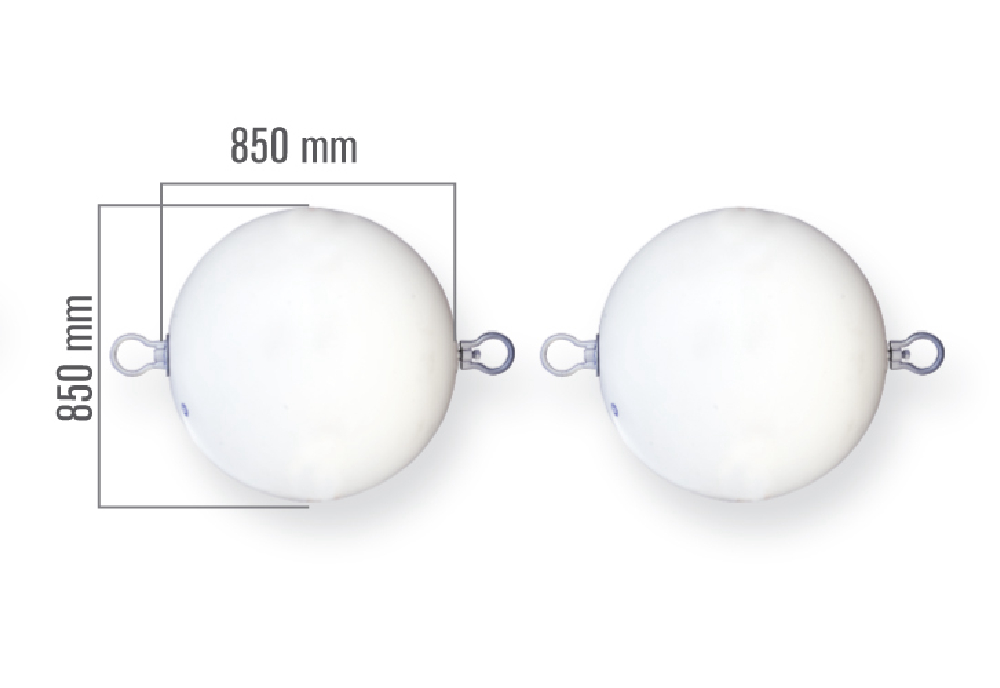

M03525
320 LT
Weight: 30 kg
Buoyancy: 290 kg

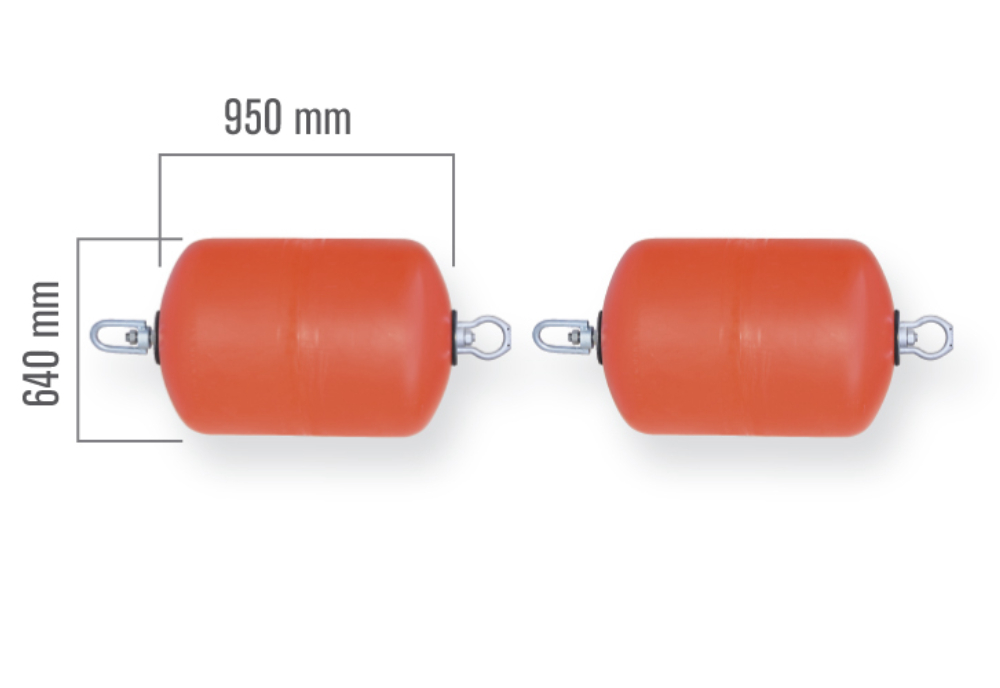

M03524
200 LT
Weight: 22 kg
Buoyancy: 180 kg
M03523
100 LT
Weight: 11 kg
Buoyancy: 90 kg

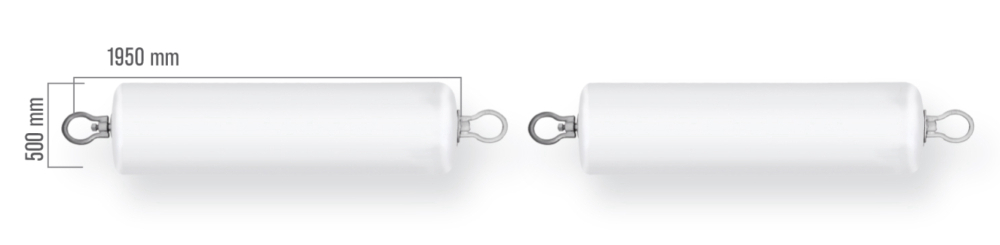

M03522
390 LT
Weight: 25 kg
Buoyancy: 350 kg

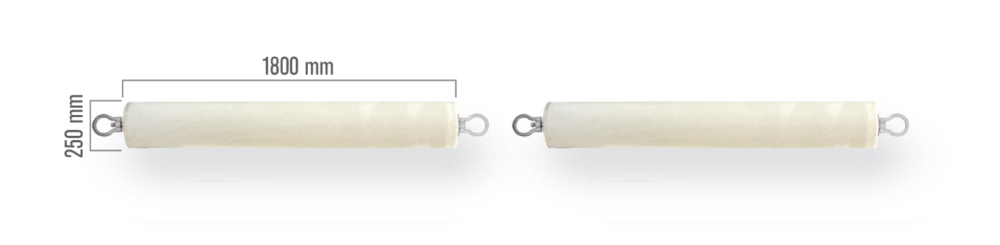

M03521
80 LT
Weight: 12 kg
Buoyancy: 70 kg

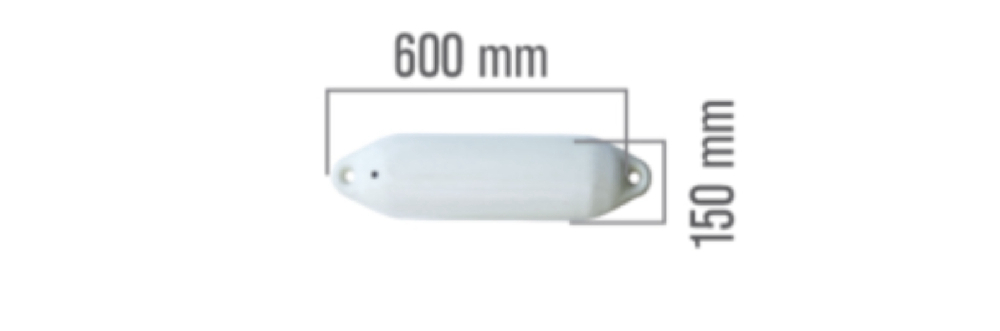

M03515
9 LT
Swimming and water sports activations help to be marking dangerous zone.
Colour: White, red
Raw material:Polyethylene
Weight: 0,9 kg
Buoyancy: 8 kg

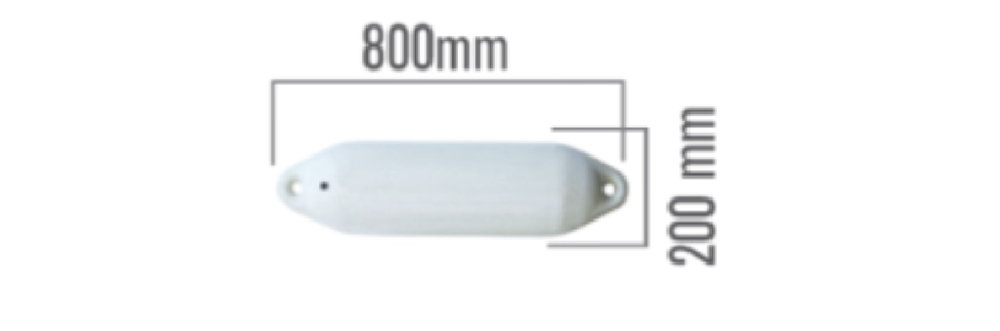

M03520
22 LT
Swimming and water sports activations help to be marking dangerous zone.
Colour: White, red
Raw material:Polyethylene
Weight: 1,8 kg
Buoyancy: 20 kg

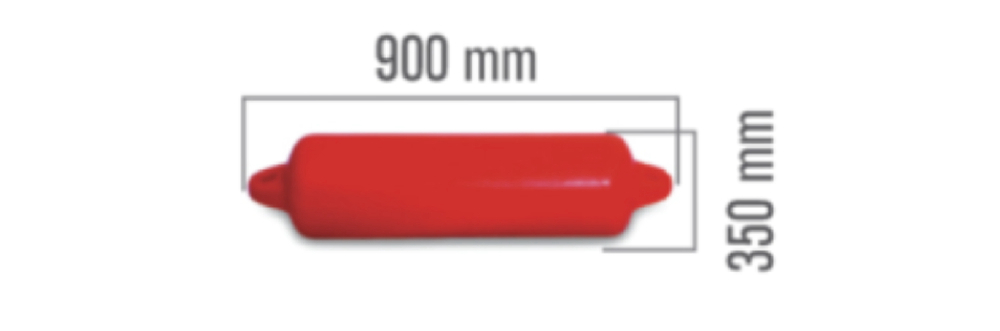

M03535
77 LT
Weight: 5 kg
Buoyancy: 70 kg

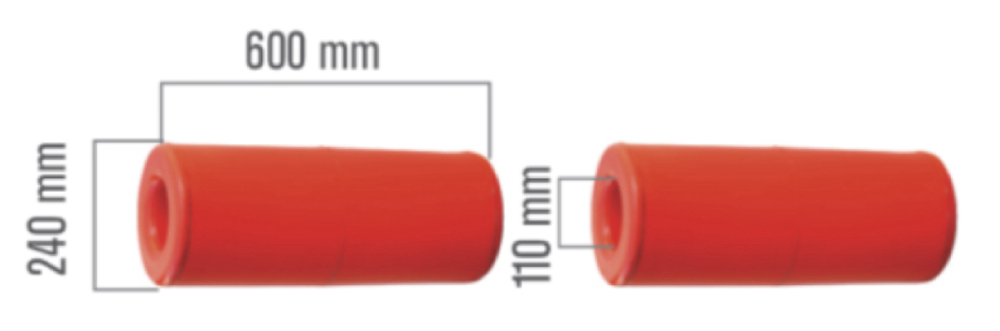

M03519
20 LT
Weight: 3,5 kg
Buoyancy: 19 kg
M03518
26 LT
Weight: 4,5 kg
Buoyancy: 23 kg
MODULAR ONSHORE PE TOWER AND MAST
Click for more information.
M0PK60
Outer Diameter : 60 cm
Height : 75 cm
Made With: Polyethylene and stairs are hot dip galvanized or stainless steel. Durable for harsh sea conditions.
M0PK100
Outer Diameter : 100 cm
Height : 100 cm
M60060
For Narrow Channels. Upper Part made from PE. Hot dip galvanized ladder. Pıllar/Spar Buoy is tied up to the weight with buoy which is underwater and steel construction
M60040
For Narrow Channels. Upper Part made from PE. The inner structure is hot-dip galvanized. It is ensured to stay in balance with ballast.
M0PK12
Outer Diameter : 12 cm
Height : 300 cm
Self-Contained Lanterns
Click for more information.
M850 Solar Led Marine Lantern
3 to 6NM
Range
GPS
M650H Solar Led Marine Lantern
3 to 4+NM
Range
GPS
M550 Solar Led Marine Lantern
1 to 3NM
NM
Range
M660 Solar Led Marine Lantern
- It is only applicable for Martek products with completed payment.
- Martek products have a warranty that buoys are free from defective materials and workmanship under normal and intended use, for a period of twelve (12)months from the date of purchase by the original purchaser.
-This one year warranty - for floatation and hardware of the buoys - is conditioned to be used under exposure to normal sun, wind, weather, and water conditions. For the damages caused by strong breeze in bad weather, the warranty is void and inapplicable
- Martek will repair or replace, at Martek’s sole discretion, any Buoy Products found to be defective in material and workmanship in the relevant warranty period so long as the Warranty Conditions are satisfied.
- If the product has been used or handled in a way not in accordance with the instructions in the owner’s manual and any other information or instructions provided to the customer by Martek, the warranty is void and inapplicable.
- If the product has been deliberately abused, or misused, or damaged by accident or due to neglect while being transported,the warranty is void and inapplicable.
- If a damaged buoy is repaired or tampered with by someone other than authorised Martek personnel the warranty is void and inapplicable.
- The customer must notify Martek of any defect with the product within 30 days after customer becomes aware of the defect.
-Specifications and design of the product determined by Martek can not be changed and/or modified without Martek's written consent.
- Martek reserves the right to modify the design of any product without obligation to purchasers of previously manufactured products and to change the prices or specifications of any product without notice or obligation to any person
- This Warranty is for the sole benefit of the original purchaser of the covered product and shall not extend to any subsequent purchaser of the product.
| MARTEK ENDÜSTRİ MAL. SAN. VE TİC. LTD. ŞTİ. |
| Kemalpaşa OSB Mah. 78 Sokak No:10/2 35175 Ulucak / Kemalpaşa / İzmir / TURKEY |
| Phone: +90 (232) 877 14 84 (Pbx) | Fax: +90 (232) 877 14 49 | e-mail: info@martek.com.tr | www.martek.com.tr |
All Rights Reserved. © 1994 - 2025 / Social Links
|
